Rotary Hammer

TC-RH 800 4F

Item no.: 4257980 EAN: 4006825634570
  • 4 functions: drilling/hammer drilling/chiselling with & without fixing
  • Overload slipping clutch for increased user safety
  • One position switch for all functions
  • Large softgrip surfaces for comfortable working
  • Continuous running lock for pleasant and easy working.
  • Pneumatic impact mechanism for excellent propulsion
  • Robust SDS-plus tool holder with semi-automatic operation
  • Speed electronics for material- and application-appropriate work
  • Infinitely adjustable plastic drill depth stop
  • Comes in an E-Box transport and storage case
See more information
Show less information
einhell-classic-rotary-hammer-4257980-productimage-001
Article description

The Einhell rotary hammer TC-RH 800 4F is an 800 W helper with four basic functions for renovation work: drilling, hammer drilling and chiselling with and without fixing. Rotary hammers are used when things get rough. They hit and drill into stubborn material such as stone and concrete. The impact impulses literally 'wear down' the material, while the cutting edge eats into the material through the rotary movement and breaks it out. Rotary hammers are also suitable for demolition work as well as for tearing or breaking away hard material such as concrete, brick or stone. The rotary hammer transfers up to 2.6 Joules to the tool and creates excellent propulsion with the pneumatic percussion mechanism for up to 26 mm of drilling capacity in concrete. The position switch is practical for all functions, while large soft-grip surfaces ensure a firm hold and thus safe handling. The rotary hammer is equipped with a continuous running lock for pleasant and easy work and a robust SDS-plus tool holder with semi-automatic operation. With all the power, the speed electronics ensure material- and application-appropriate work, and overload slipping clutch ensures safety. The infinitely adjustable drill depth stop is made of sturdy plastic. Comes in an E-Box transport and storage case.

See more information
Show less information

Technical details

Impact strength2.6 J
Max. drilling power concrete26 mm
Number of transmission gears1
Power800 W
Power cable length3 m
Product weight3.06 Kg
Transmission materialStainless steel
Pneumatic-impact-mechanism

Pneumatic impact mechanism

The pneumatic impact mechanism works with a frequency of up to 4,500 bpm and an impact force of 2.6 Joules.

Practical-speed-control

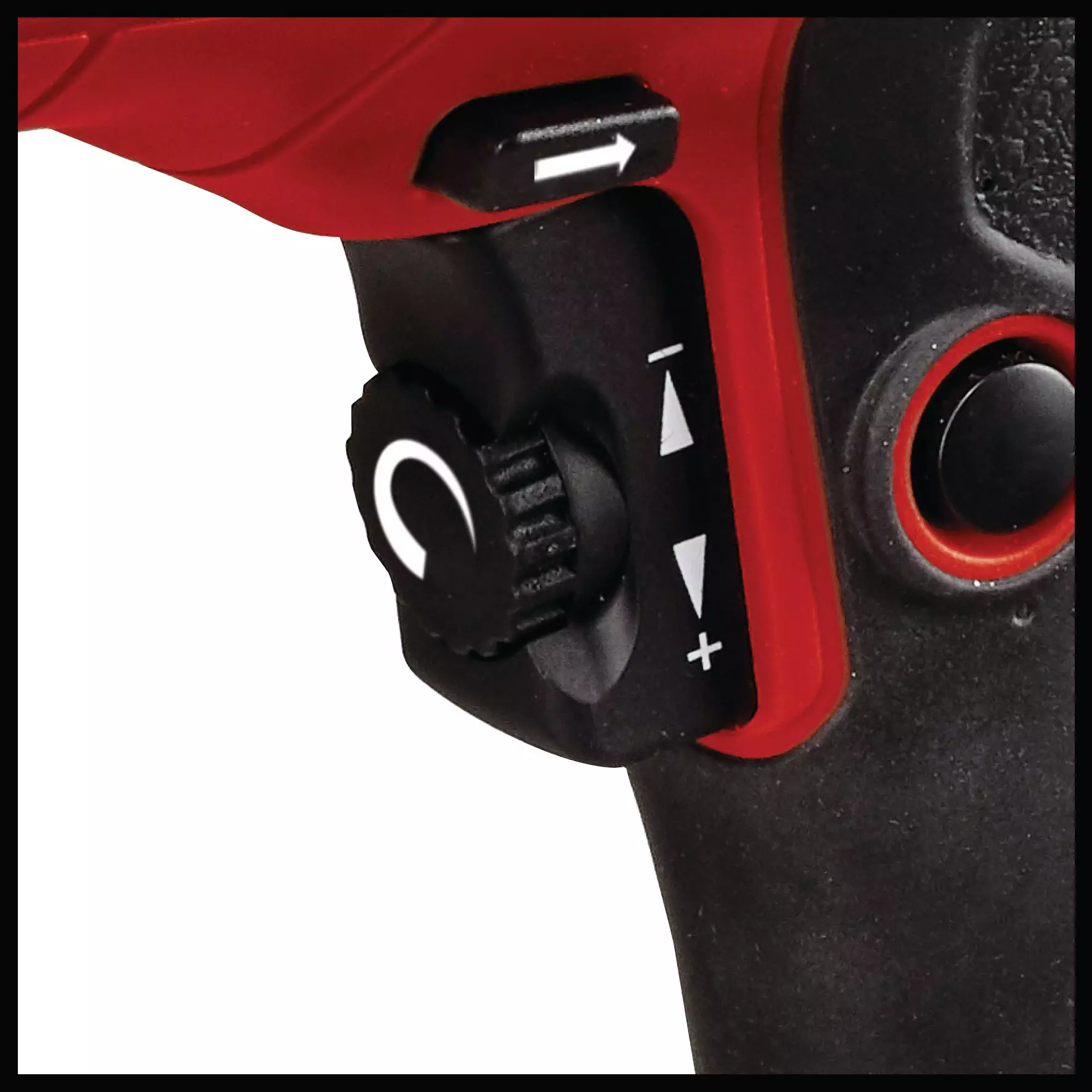

Practical speed control

With the finely adjustable speed control electronics, work can be carried out sensitively and matched to the material.

Infinitely-variable-drill-stop

Infinitely variable drill stop

The infinitely adjustable depth stop is made of stable plastic and can be individually set to the desired drilling depth.

Overload-protection

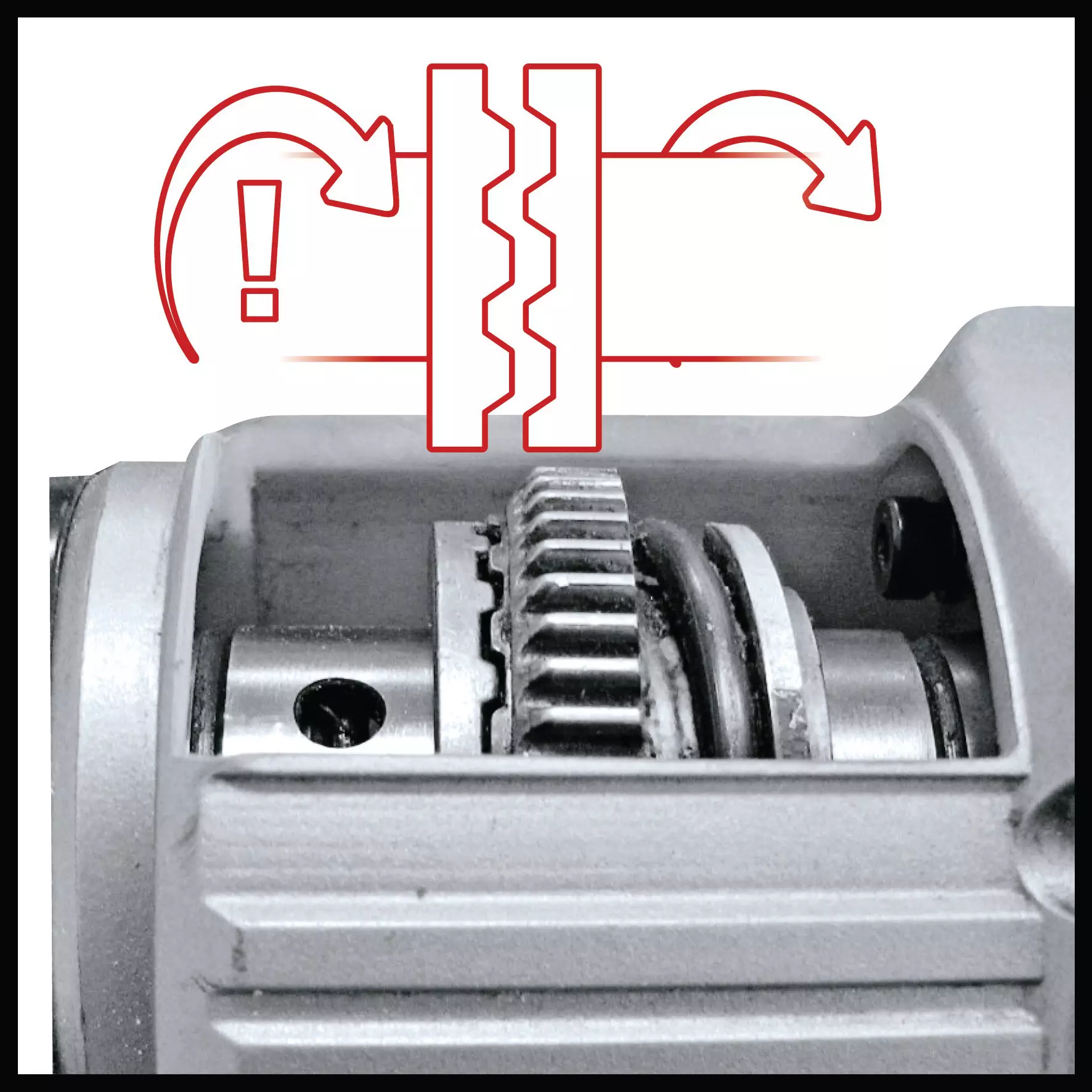

Overload protection

The overload slipping clutch protects the rotary hammer from damage, for example, caused by blocking or overloading the tool.

SDS-Plus-tool-holder

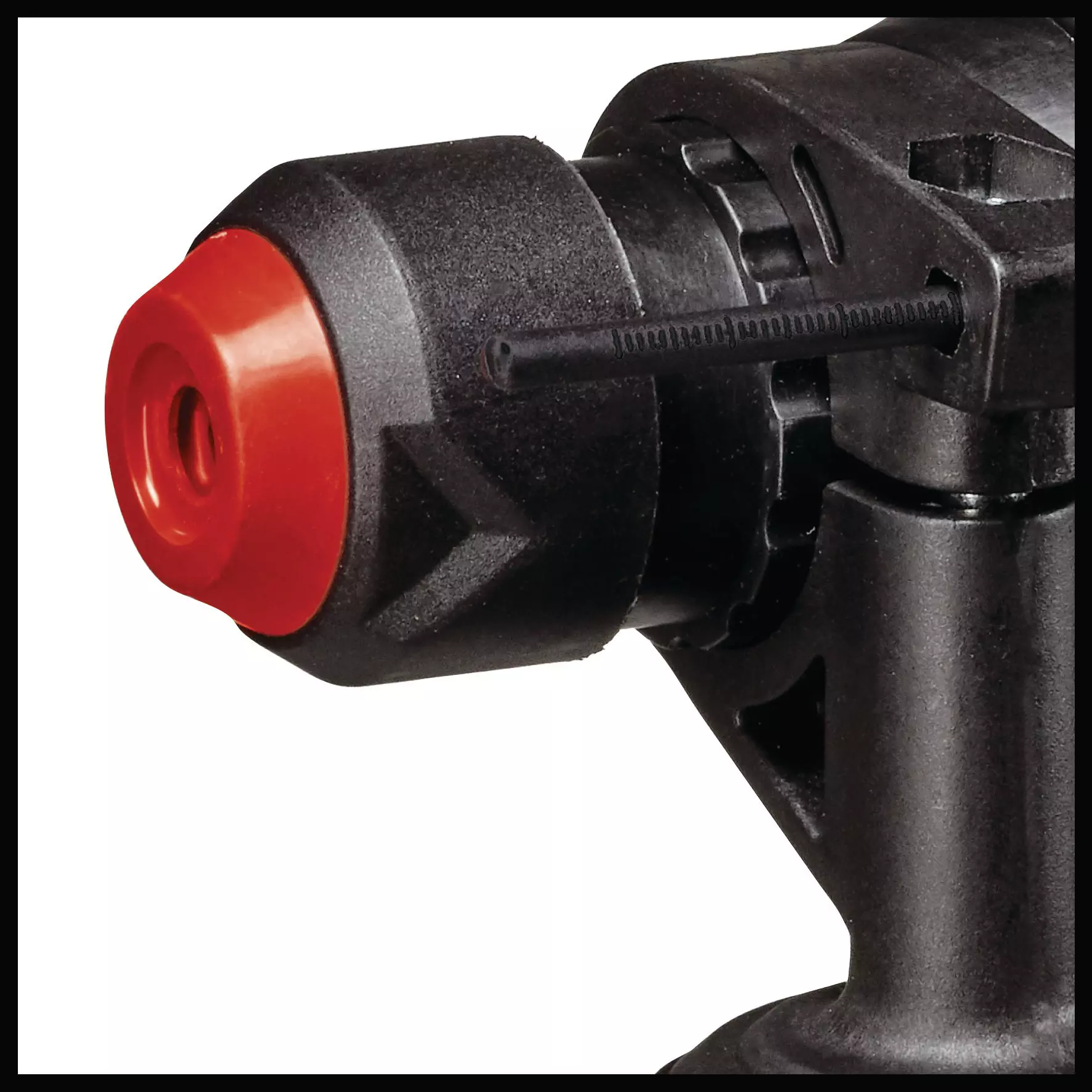

SDS-Plus tool holder

The SDS-Plus holder with semi-automatic operation enables quick and tool-free drill bits and chisel changes.

Numerous-functions-in-one-device

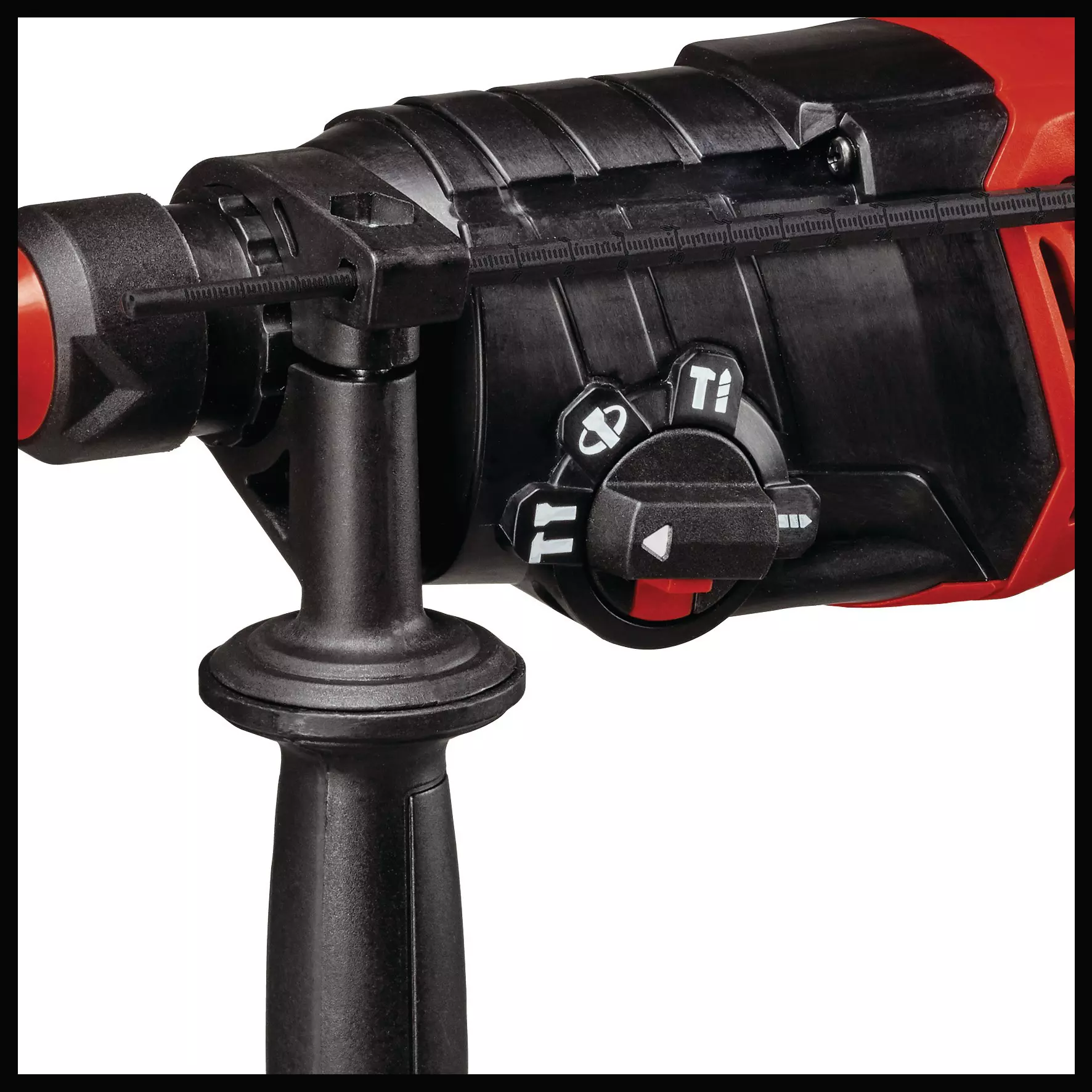

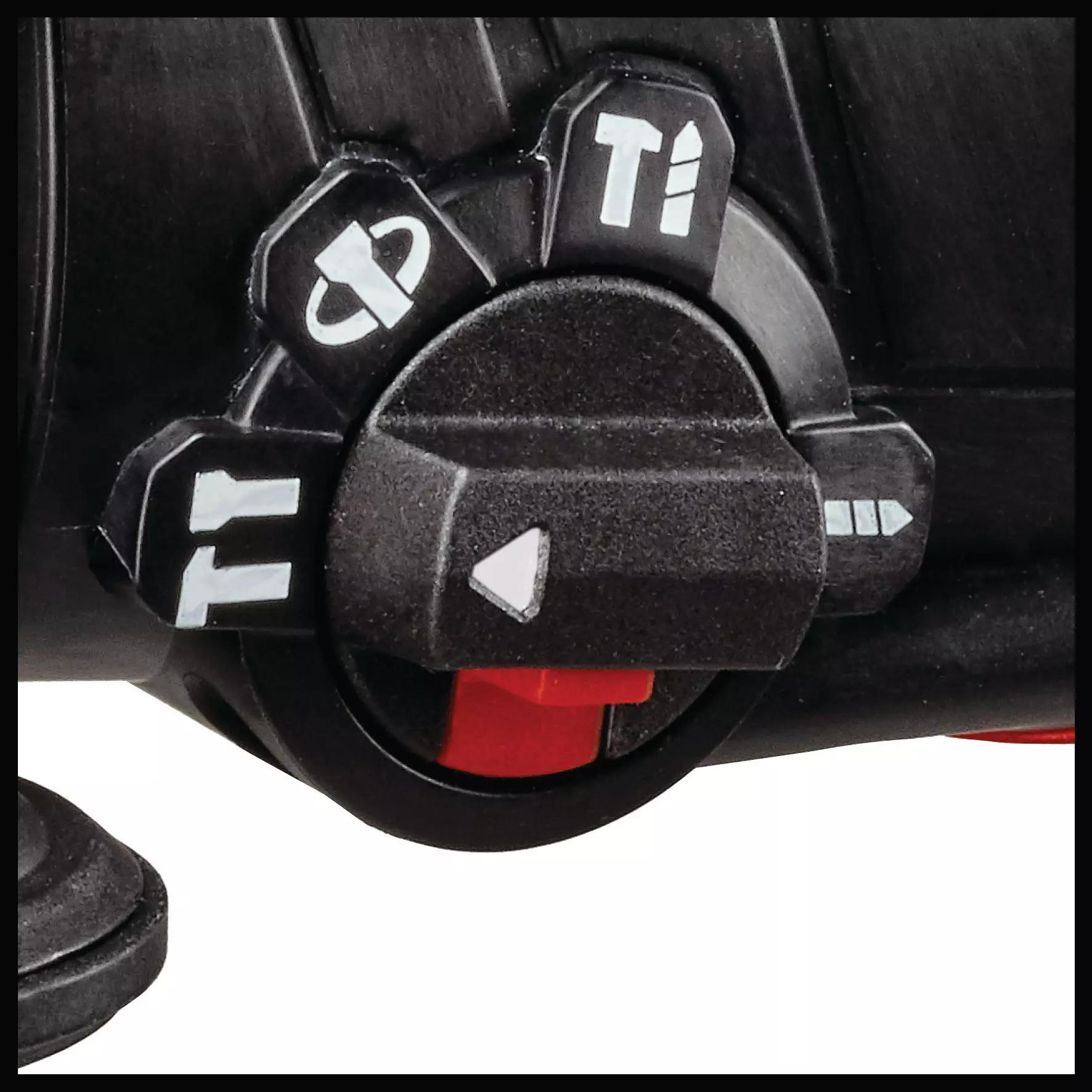

Numerous functions in one device

The rotary switch makes it quick and easy to switch between drilling, hammer drilling and chiselling functions.

4 in 1: (hammer) drilling & chiselling with/without fixing

With its reliable performance, the Einhell rotary hammer TC-RH 800 4F is a real all-rounder in the home, workshop and garden. When chiselling, tiles and bricks don't stand a chance against the power of the rotary hammer. And even concrete and granite cannot withstand its drilling power.
